Product Detail

The 100W Spektrum™ S1100 Smart AC Charger provides easy charging for all modelers, especially using Smart batteries — with Auto Charge simplicity, one-connection balancing, IC3® or IC5® output ports for adapter-free convenience, and more.

Features

• Delivers 100W power for charging

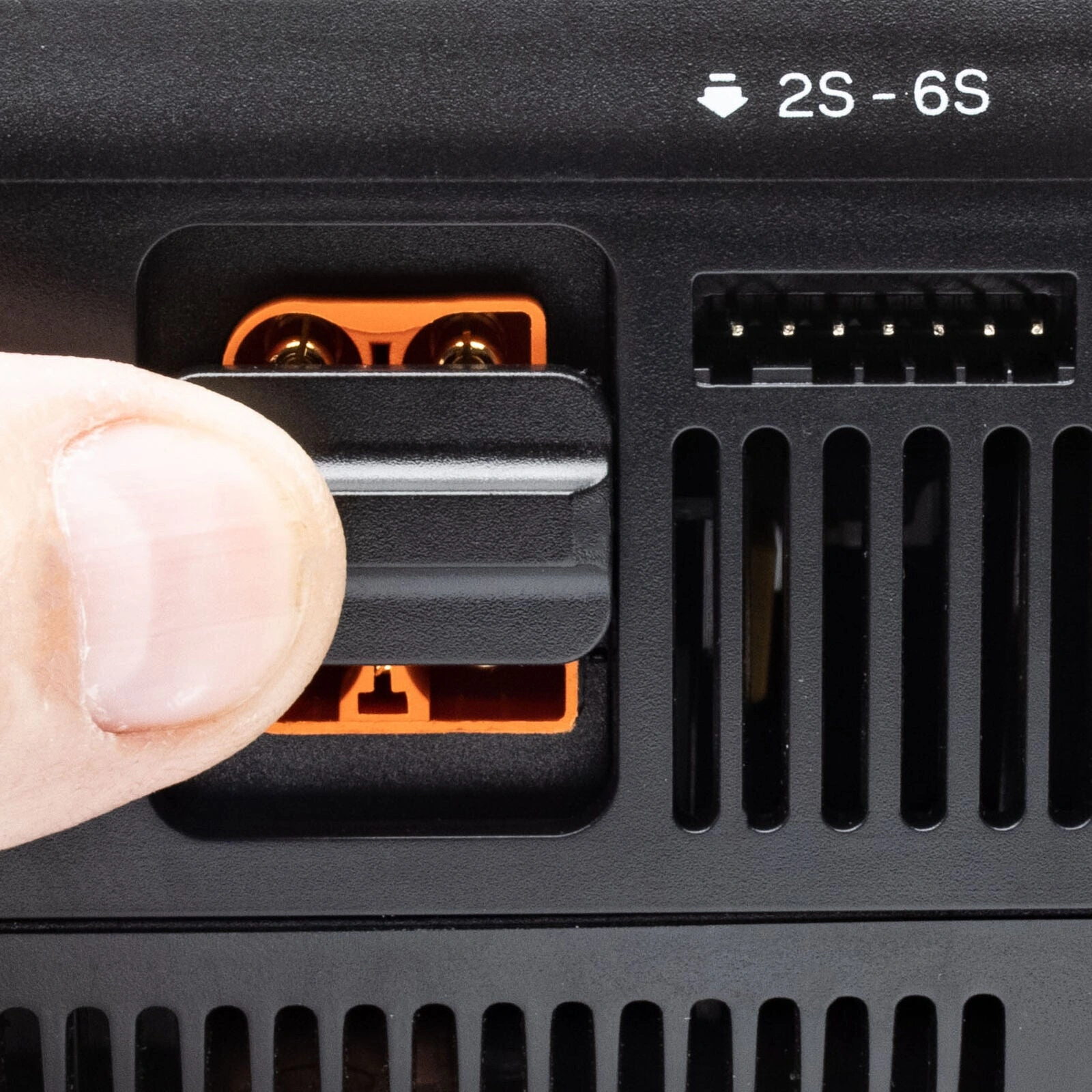

• Charges AND balances Smart batteries with one simple IC3® or IC5® connection — no separate balance lead needed

• Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected

• Charges virtually any RC battery (use Smart batteries to benefit from all charger features)

• Smart software tracks and stores numerous Smart battery data

• Includes IC3® and IC5® charging output ports — no separate adapters required to charge different Spektrum™ Smart batteries

• An on-screen clock counts down the remaining charge time until your Smart battery is fully charged and ready to use

• Updated user interface features fresh, intuitive menus, icons, and navigation tools, plus non-slip, easy-to-use buttons

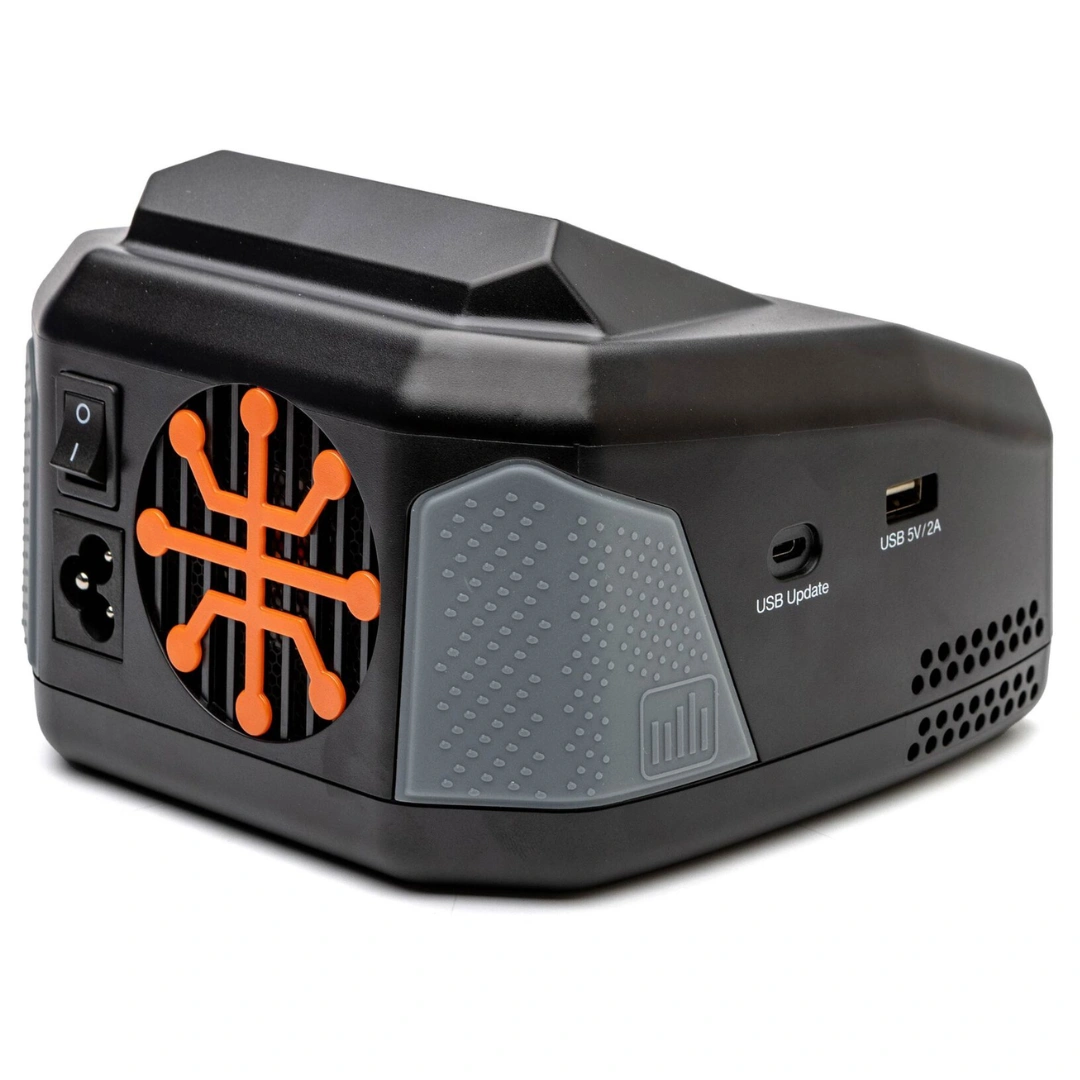

• USB input and output ports are included for updating firmware and charging secondary devices

• ON/OFF switch eliminates the need to plug in and unplug the power cord for on/off control

• Detachable power cord makes transporting more convenient

• Includes an efficient, low-noise cooling fan

• Compact size and the sleek, sturdy case fits nicely on a workbench and in pit or field bags

• Handy rubber grips on the case make it easier to plug in and remove batteries
  IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors

Specification

• Application: RC model battery charger

• Hard Case: Yes

• Display: 2.4' 320 x 240 IPS LCD

• Number of Cells: 1 - 6S Li-Ion/LiPo/LiFe, 1 - 16S NiCd/NiMH, 1 - 12S Pb

• Reverse Polarity Protection: Yes

• Thermal Protection: Yes

• Discharge: 0.1 - 1.5A, adjustable in 0.1A increments (15W Max)

• Peak Detection: Yes

• Safety Timer: Yes

• Output Connector: IC3 and IC5 selectable

• Programmable: Yes

• Battery Balance Connector: JST-XH

• Selectable Charge Rate: Yes

• Charge Protection Circuitry: Yes

• Maximum Charge Rate: 10.0A (100W Max)

• Product Length: 5.7' (145 mm)

• Voltage Meter: Yes

• Battery Type: LiFe (3.3V per cell),LiHV (3.8V per cell),LiIon (3.3V per cell),LiPo (3.7V per cell),NiCd (1.2V per cell),NiMH (1.2V per cell),Pb (2.0V per cell)

• Input Voltage: 100 - 240V AC, 50 - 60 Hz

• Maximum Continuous Discharge Current: 1.5A (15W Max)

• Over Current Protection: Yes

• Software Updates: Yes

• Integrated Balancing: Yes - Internal Balancer & Internal Adapter

• Product Weight: 1.75 lb (795g)

• Technology: Smart

• PC Connectivity: Yes

• Product Width: 5.7' (145 mm)

• Normal/Standard Charge Rate: 0.1 - 10.0A, adjustable in 0.1A increments (100W Max)

• Short Circuit Protection: Yes

• Amp Meter: Yes

• Product Height: 4.1' (104 mm)

• Battery Temperature Monitoring: Yes

Includes

• 1pcs S1100 Smart AC Charger
• 1pcs Power Cord
• 1pcs Manual
