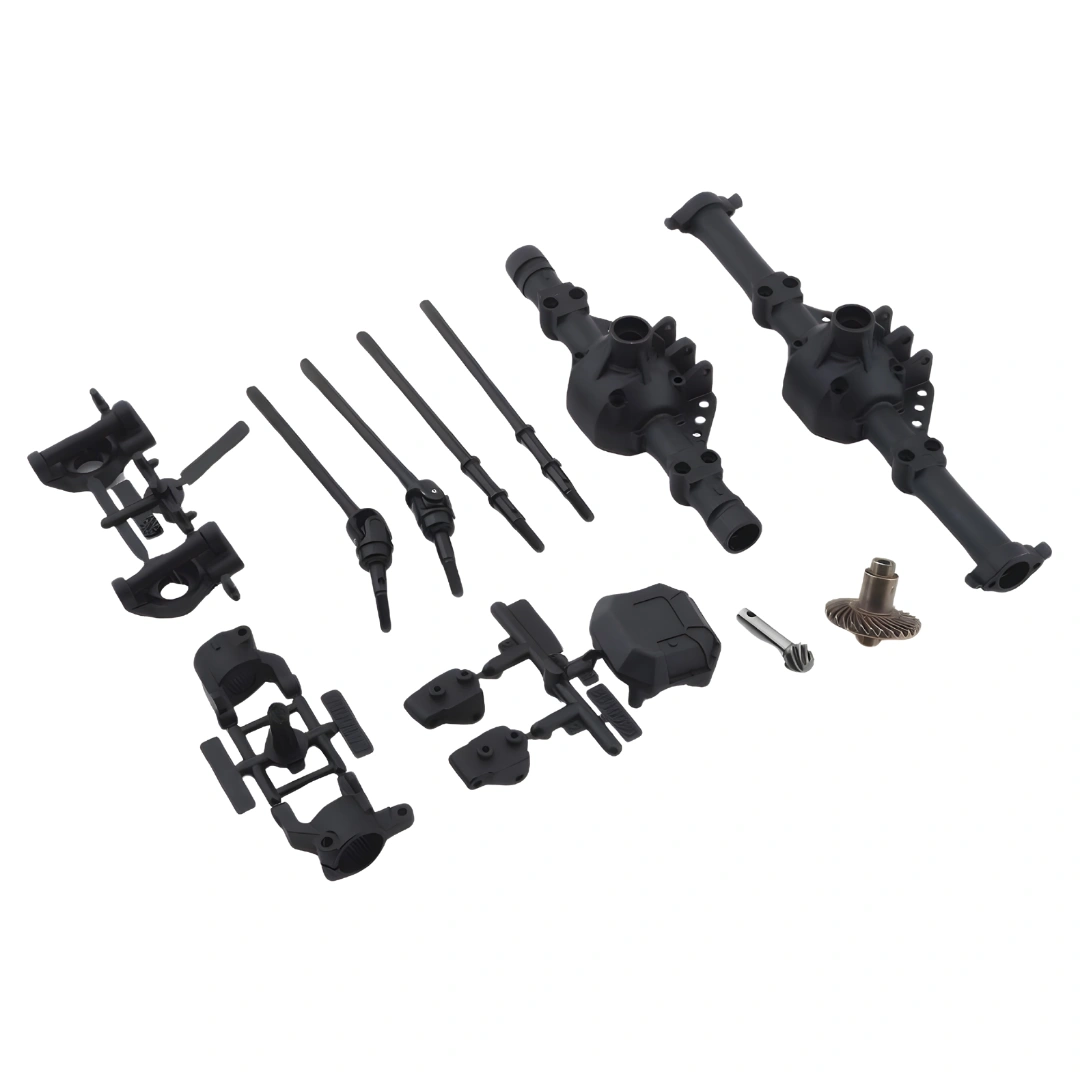

Element RC Enduro Axle Kit. This kit includes the components and hardware needed to build one complete front axle housing - OR - one complete rear axle housing.

NOTE: Ring gear, pinion gear, diff cover and hardware are required to build two complete axles.

Includes

• (1) Assembly instructions
• (1) CR10 Axle Housing
• (2) CR10 Axle Mount (Outer)
• (1) CR10 Axle Housing (Front)
• (1) CR10 Axle Housing (Rear)
• (1) CR10 Caster Block (Left)
• (1) CR10 Caster Block (Right)
• (2) CR10 Steering Spindle
• (1) CR10 Steering Plate (BTA-Left)
• (1) CR10 Steering Plate (BTA-Right
• (1) CR10 Ring Gear [30T]
• (1) CR10 Pinion Gear [8T]
• (2) CR10 Universal (Front)
• (2) CR10 Drive Shaft (Rear)
• (4) CR10 Wheel Hex, Composite
• (4) Shoulder Screw [M3x4x10mm]
• (2) M2.5x0.45x16mm SHCS (Black)
• (4) M2.5x0.45x14mm SHCS (Black)
• (2) M3x14mm BHCS (Black)
• (4) M3x0.5x12mm BHCS (Black)
• (4) M3x0.5x6mm BHCS (Black)
• (2) CR10 Drive Shaft Pin [2x11mm]
• (6) Rubber Sealed Ball Bearing [5x
• (2) Ball Bearing [7x14x3.5mm]
• (2) Ball Bearing (Rubber Shielded)
