Product Detail

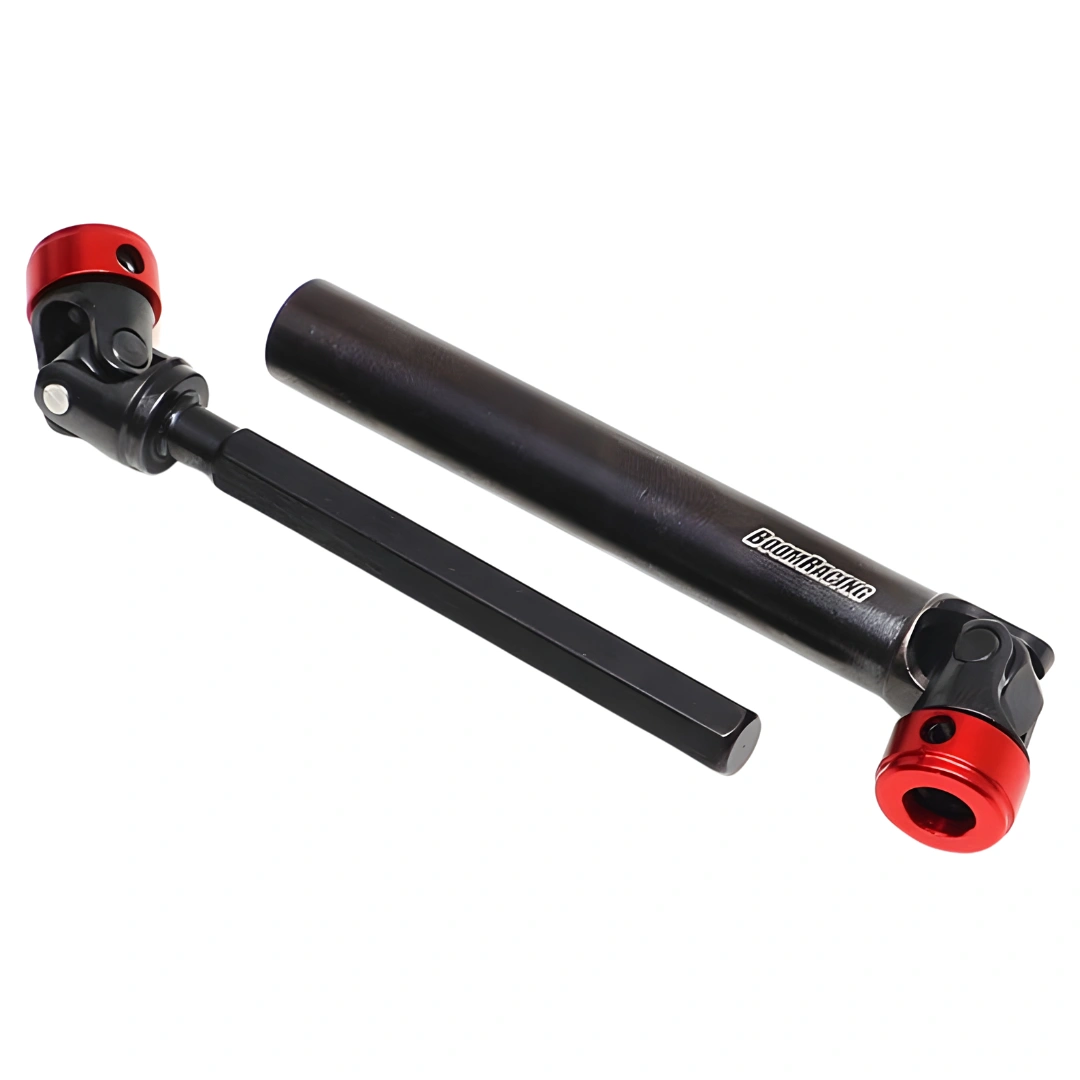

This is a BADASS heavy duty steel universal centre drive Shaft RC rock crawlers.

• BADASS is a product line Boom Racing developed to represent ultra durability and strength, using the highest quality material for RC parts.

• Grub screw pin taps into the driveshaft. The red collar rings are not threaded and are for scale looks.

• Washers and spacers are provided to shim the input and output shafts that are especially needed for high pinion bevel gears.

• The female shaft are splined all the way through.

Specifications

• High grade alloy steel
• Lightweight and ultra hard steel for strength and durability
• Input/Output hole side: 5mm
• High degree articulation (no binding)
• Beefed up joints with press-fit design for ultra durability
• Long-lasting and tested against metal fatigue
• Splined all the way though (Male and Female)
• Realistic scale looks
• Adjustable length: 128-156mm (124-152mm pin-to-pin) and 105-135mm (101-131mm pin-to-pin)

Compatibility

• Element RC 1/10 Enduro Crawler

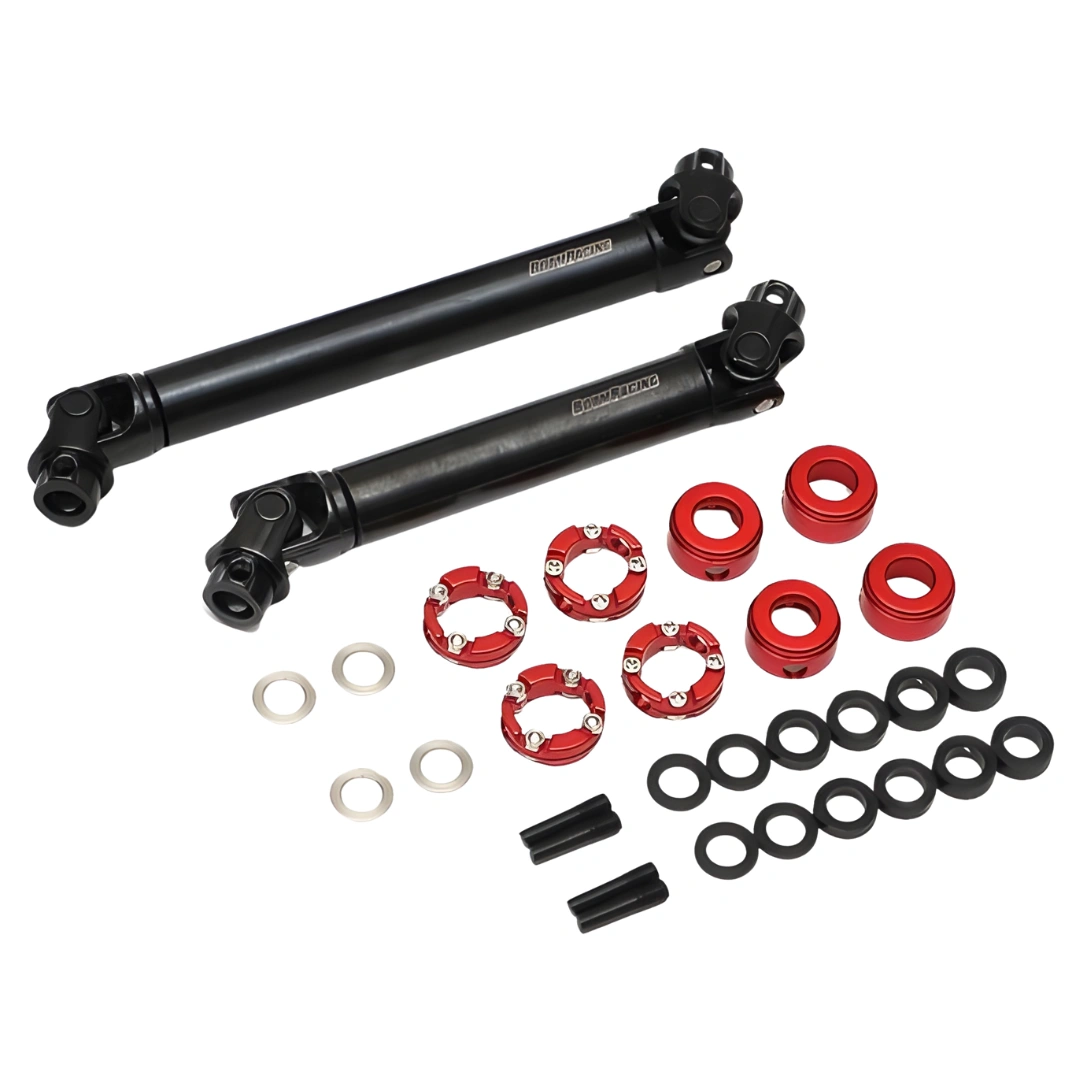

Includes

• 1x BADASS HD Steel CVD Centre Driveshaft 128-156mm (124-152mm pin-to-pin) BRBD955003A

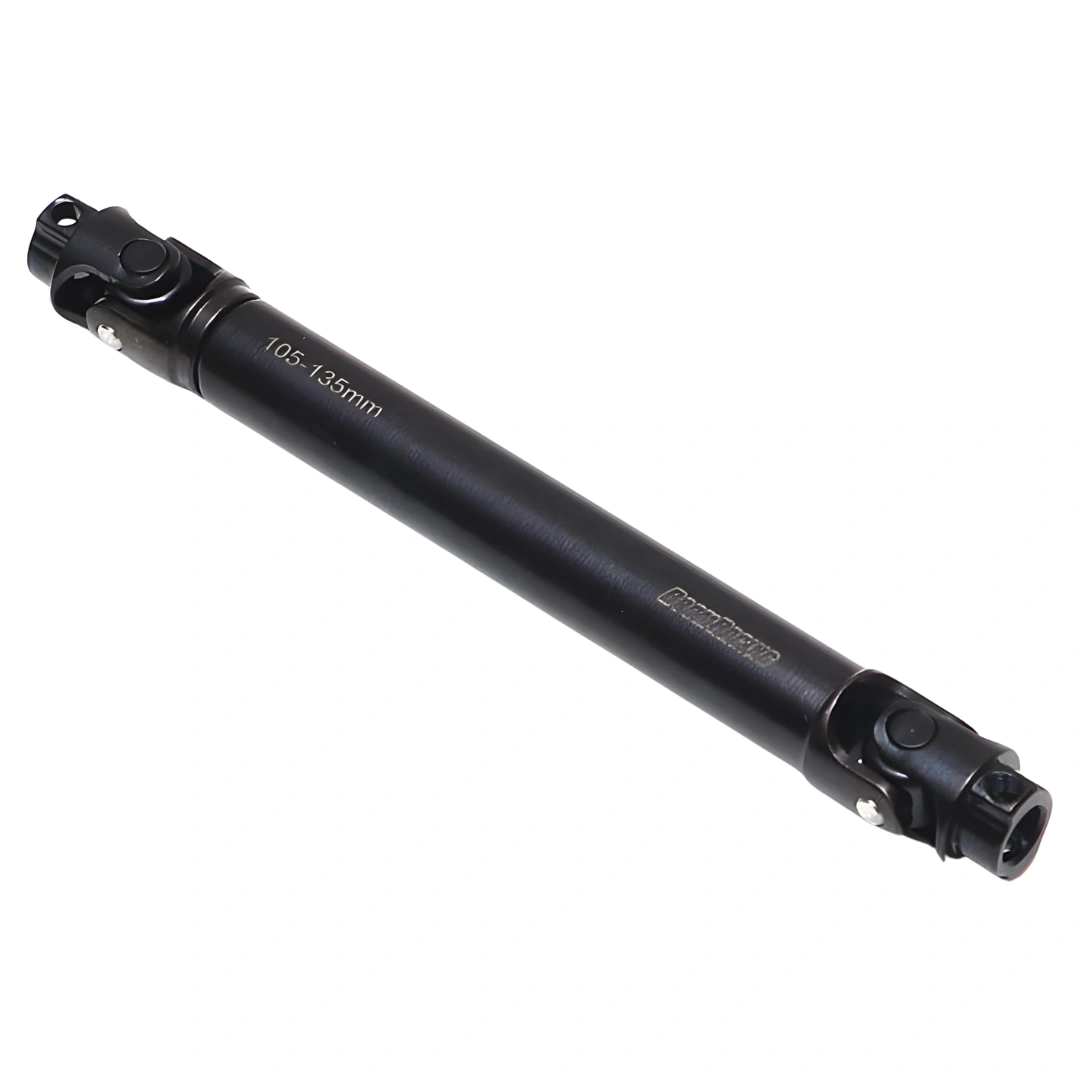

• 1x BADASS HD Steel CVD Centre Driveshaft 105-135mm (101-131mm pin-to-pin) BRBD955003B
• 4x Aluminum CNC collars (with scale bolts)
• 4x Aluminum CNC collars (low profile)
• 4x M3 set screw pin #BRASST3024/DS
• 4x Washer 0.5mm
• 4x Spacer 1mm
• 4x Spacer 2mm
• 4x Spacer 3mm
