Tamiya 1/14 Mercedes-Benz Arocs 6x4 Tipper RC Truck Model Kit

Tamiya 1/14 Arocs 3348 RC Tipper Truck – Build Your Heavy Hauler!

“Unleash your inner adventurer with the Wanderlust Journal – more than just a notebook, it’s a portal to unforgettable experiences. Crafted with supple, richly textured paper, this journal invites you to scribble down secret dreams, map out epic journeys, and capture the vibrant details of life's greatest moments. Let your thoughts flow freely, adorned with a durable, beautifully bound cover that whispers tales of exploration. It’s the perfect companion for the curious soul, the daydreamer, and anyone seeking to live a life less ordinary.”

$350.50 $701.00

num:

description

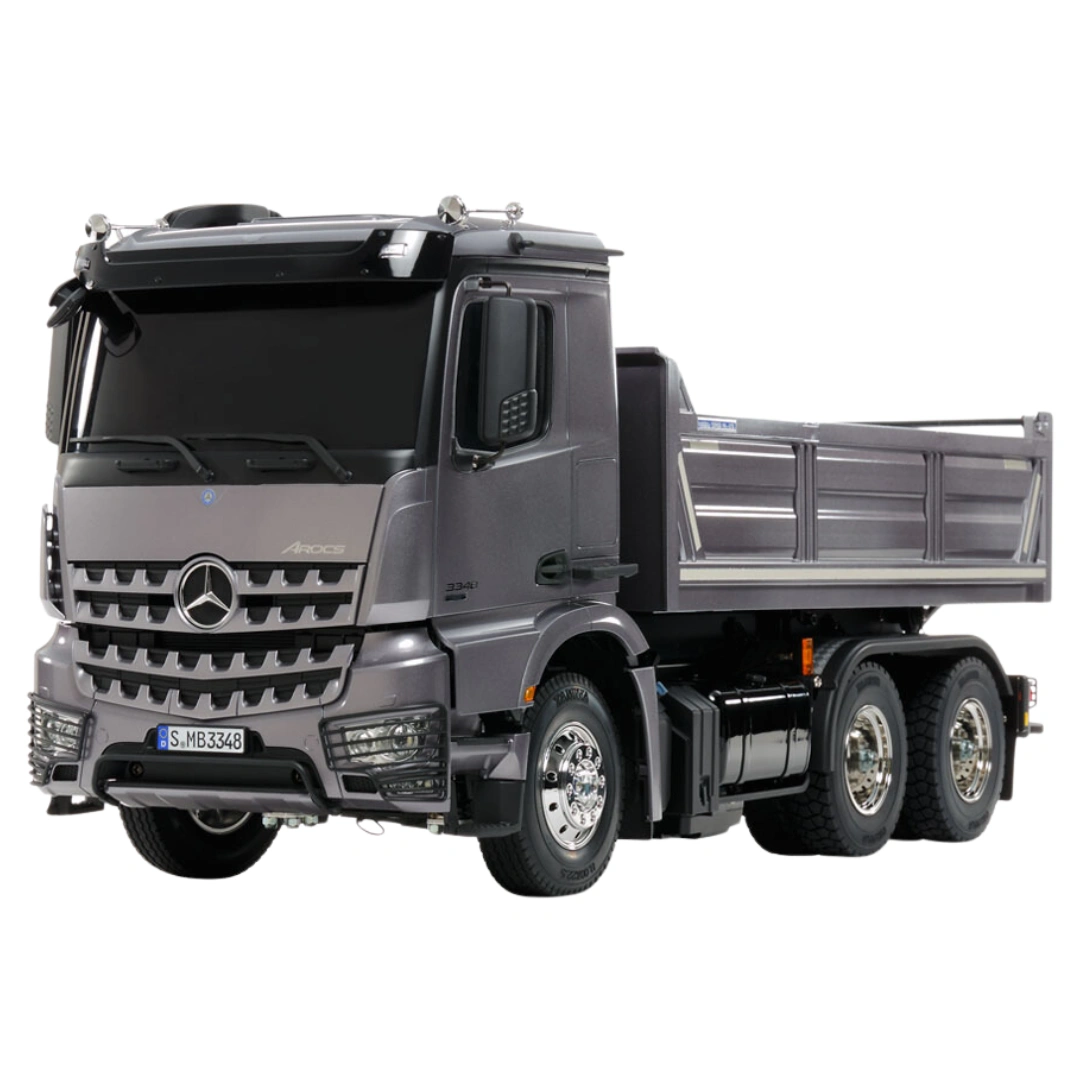

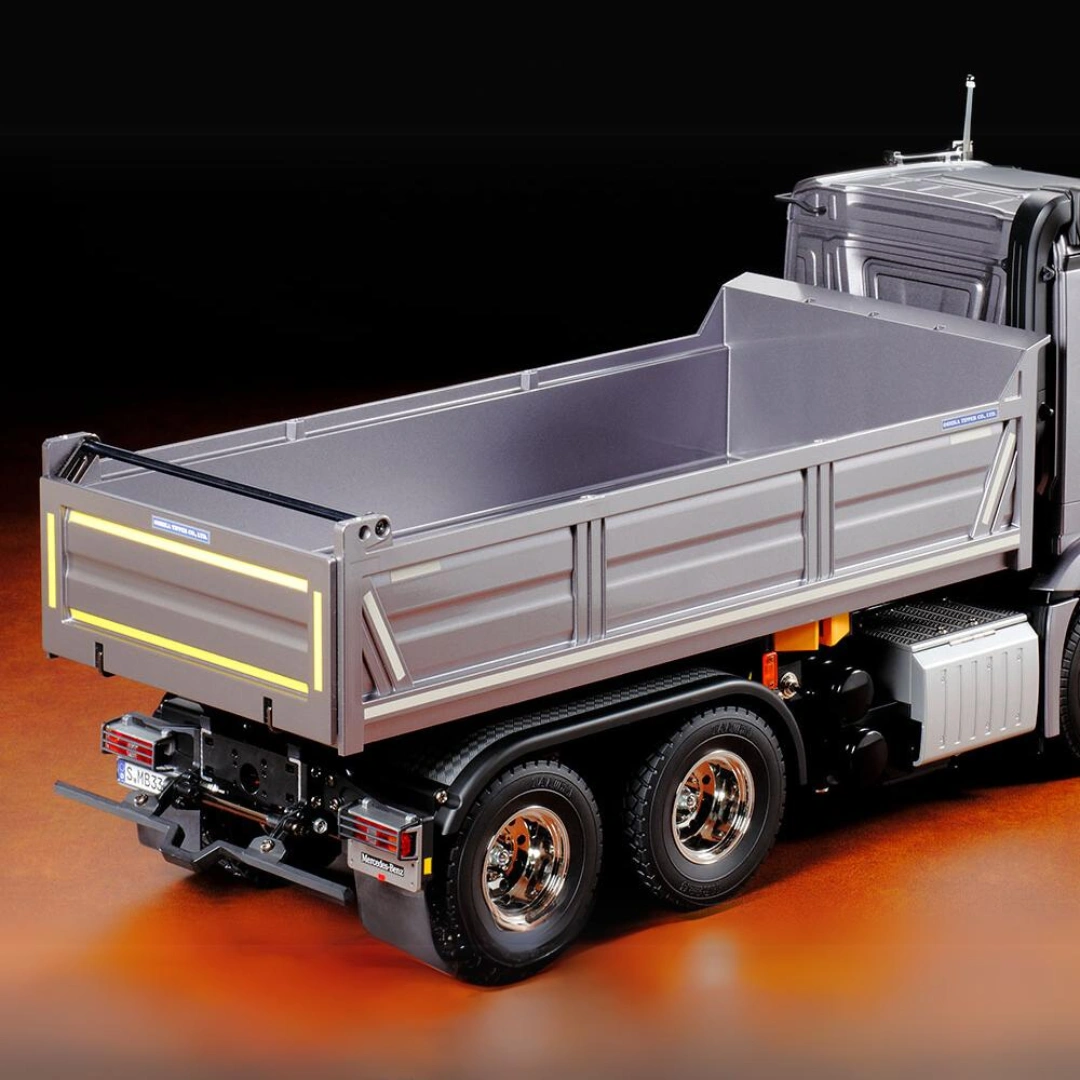

The Arocs series is a line of heavy-duty models introduced in 2013 by the world's leading truck manufacturer, Daimler AG (Germany). This R/C model assembly kit recreates the dual rear axle-driven Arocs 3348 6x4 tipper truck, which runs on a 12.8-liter turbocharged inline-6 engine capable of 480hp. The highly detailed body breathtakingly captures the slimline form of the truck cab, including the distinctive bucket tooth design grille. Depictions of headlight guards, front bumper and skid plate underneath are parts of a truly realistic finish. The assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter. The ladder frame chassis features aluminum side channels with resin cross members. A realistic 1-piece resin bed is reinforced with a metal frame. Power from the front-mounted motor is delivered to rear axles via propeller shaft; a built-in differential gear on each axle enables smooth cornering. Highly-realistic suspension utilizes metal leaf springs and friction dampers. The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.

Get Tipping!

This set features parts to enable control of Tamiya 1/14 R/C tipper truck beds via separately sold transmitter. It includes geared motor, spindle shaft, link pieces and ACU-01 unit, and can raise beds carrying loads of up to 10kg. A clutch is installed to help prevent damage due to over-loading.

Specifications

Length: 576mm, Width: 190mm, Height: 267mm, Weight: Approx. 4.3kg (*with R/C equipment and battery pack attached)
Wheelbase: 257mm+103mm
Tread: 156mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle: 0° (Front & Rear)
Camber Angle: 0° (Front & Rear)
Toe Angle: 0° (Front & Rear)

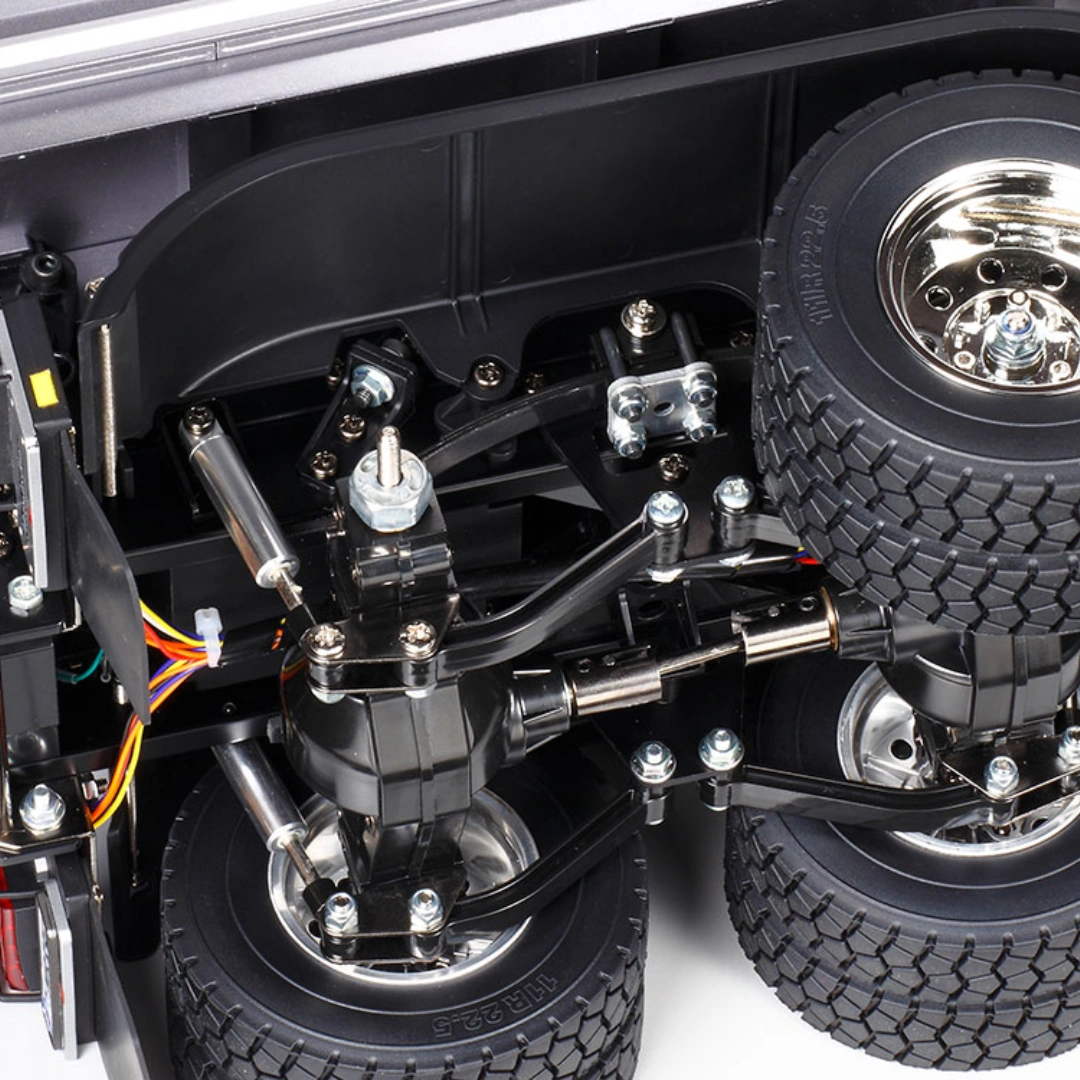

Dampers: Front/Rear Aluminum Friction Dampers
Drivetrain: Rear 2-Axle Drive
Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff Gear: 3-Bevel Diff.
Motor: TR Mighty-Tuned (35T)
Tire Width/Diameter: 22/83mm (Front), 22/84mm(Rear)
