Product Detail

Introducing the MA-030EVO Chassis Set Red Limited edition!

Included

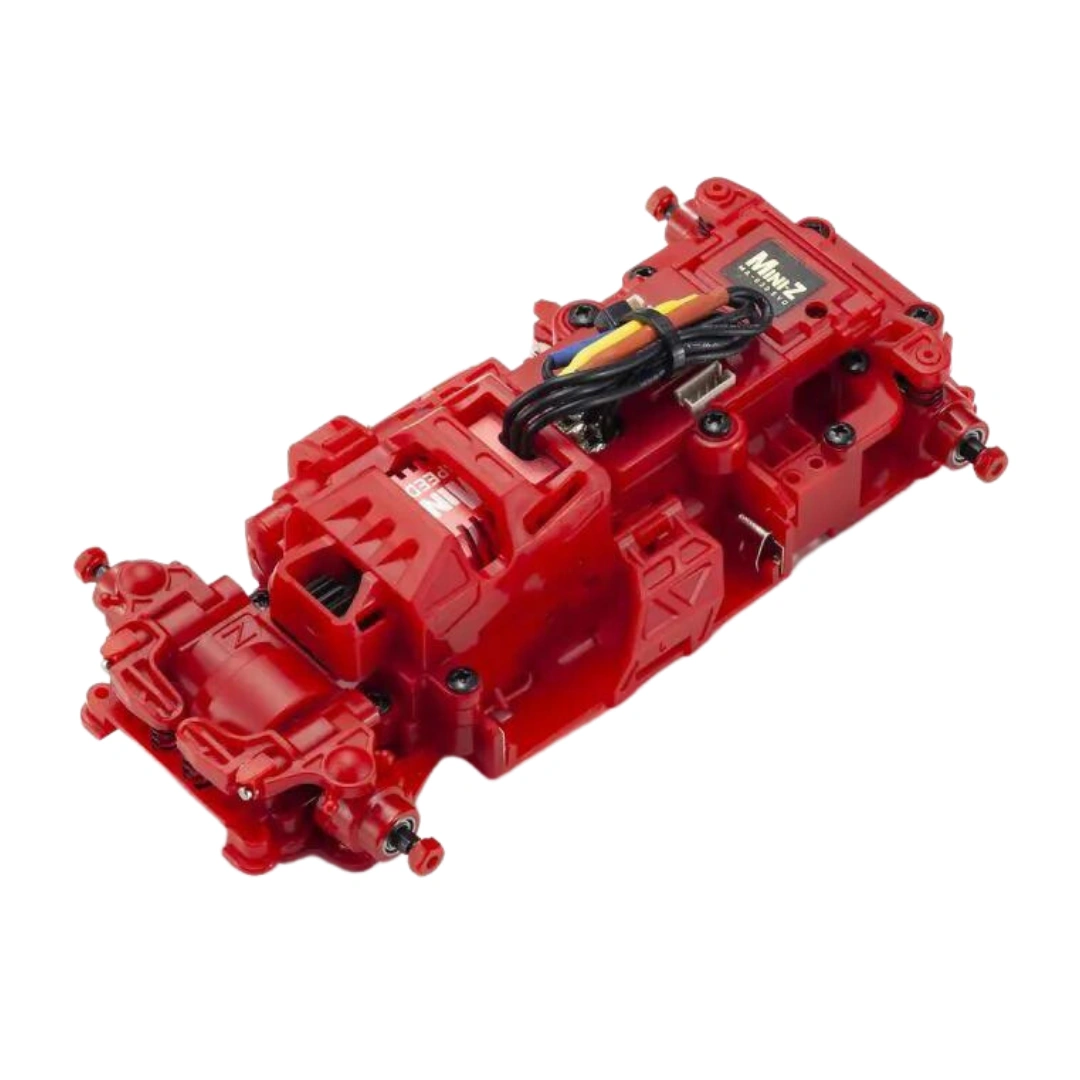

• Factory-assembled chassis equipped with EVO main unit installed
• Pinion Gears (15T, 17T, 19T, 21T)
• DWS conversion parts *Front tread conversion parts
• Pinion gear removal tool
• Spare wheel nuts
• Wheel wrench
• Centre shaft for L wheelbase
• Wide rear suspension arms for DWS
• Swing shafts (4 x long)
• Spur gears (27T, 29T, 31T)

Specs

• Scale: 1/27.6
• Length: 126.0mm
• Width: 65.0 - 76.0mm (adjustable by wheel offset)
• Height: 36.0mm
• Chassis Type: MA-030
• Wheelbase: 94.0mm (only with strut rear suspension installed), 98.0mm (factory assembled)
• Weight: 135g
• Brushless 8500KV
• Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
• Tire Diameter (F/R): sold separately
• Tire Width (F): sold separately
• Tire Width (R): sold separately
• Transmitter: Not included
• Top speed: approx. 17km/h
• Runtime: approx. 50min.Length: 126.0mm

Required To Run

• 8 x AAA batteries
• Auto Scale Collection (body, wheels and tires)
• Transmitter
• MINI-Z EVO receiver unit compatible with the transmitter used
